How To Make A Window Frame For A Shed

How to make shed window frames

Making shed window frames can sometimes be the only option. Information technology may be that you lot need to supplant some old garden shed window frames and tin't find the right size or it may be that you are building a new shed and just fancy building your own window frames for a challenge.

Either way there are quite a number of details to empathise and get right to make sure that yous get the sort of operation that you desire. So, lets have a await at these details get-go and and then get into the stride by stride process of shed window frame construction.

Shed window frames from concept to completion

What are some of the details required to make shed window frames water and weatherproof

The outset thing to address is that these are shed windows, not house windows. They share many details common to all windows but shed windows don't demand to made to the same cost/functioning standards as business firm windows.

House windows are quite a technological marvel, having a host of standards and design practices to ensure that indoor living spaces are dry, draught gratuitous and durable. A shed window doesn't demand to perform to the same level as a business firm window, but they certainly practise need to do an effective job of letting light into your shed whilst keeping the water out.

Making your ain shed windows gives y'all the opportunity to save coin whilst also gaining an appreciation of the details that become into window structure, equally well every bit the huge sense of satisfaction of making something that will work well for many years.

The details that nosotros need to consider are:

• 1. What type of timber to utilise for the shed window frame
• two. What size timbers to use for the window frame
• 3. What type of joint to use to connect the shed window frame members
• 4. The options for glazing your shed window

1. What type of timber to use for the shed window frames

This depends on how long yous would like your shed to terminal. The main enemy of any shed window is the combination of h2o and sunlight. Sunlight repeated heats and cools the timber which over the huge number of cycles in a year causes the timber to separate. H2o volition find its way into whatever splits in the woods or gaps in joints and over the years volition initiate decay.

So, for whatever timber you lot choose if you can provide protection to the timber with regular maintenance and application of a good quality paint or stain then that volition prolong its life.

Many shed windows are constructed from redwood timber and 'dip treated' confronting decay. Combined with regular maintenance and detailing this approach can requite many years of service. In this project I utilize pressure treated (tantalised) construction timber. This isn't peculiarly fancy but gives a serviceable and durable window. If this was from a big window manufacturer so all the components would exist pressure level treated/tantalised afterward fabrication so that all the cut sections of timber were fully protected.

This isn't the case here, so if you lot are particularly concerned and your window is particularly exposed and so treating all of the cut surfaces with something such every bit SikaGard Wood Preserver and painting prior to assembly volition give additional protection.

two. What size timbers to use for the shed window frame

For the shed window frames in this case I used 45x45mm (two"x2") timber for the meridian and sides and a section of 95x45mm (4"x2") for the window cill. These members gave a good dimensional balance to provide the strength and stability for a single glazed window and also reasonable dimensions for plumbing equipment the glass and securing to the rough opening in the shed wall. Each of the sides and top member have a 10x15mm groove machined in them to conform the drinking glass and glazing bead.

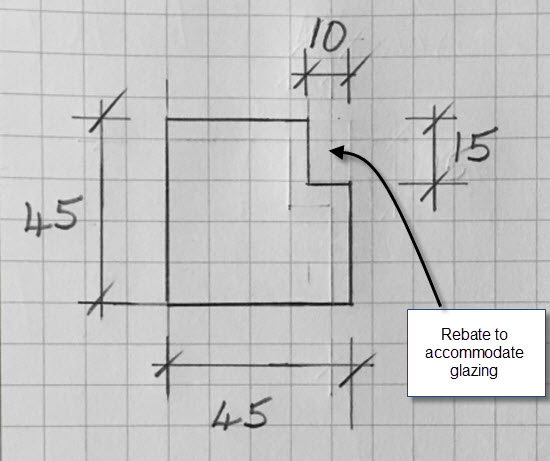

Typical department through timber for shed window frame

The window cill is a different section than the balance of the frame. By machining the bottom section of the window out of 4x2", the cill and the window frame are made out of a single slice.

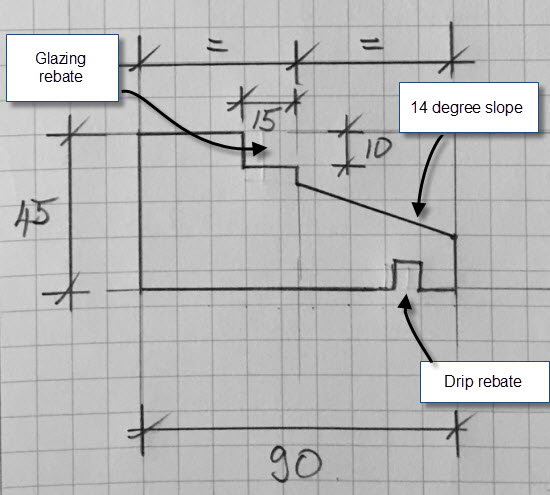

Section through shed window cill showing details

There are a couple of points to annotation here, the slope of the cill and the baste groove.

ane. The window cill is cut with a 14 caste gradient to help it effectively shed the rain.

2. The drip groove on the underside of the shed window cill is there to force the h2o running down the window and onto the cill to drop off onto the ground, rather than standing to menses underneath the cill and back into the shed.

Now I have introduced you to the various parts of the shed window frame let's take a expect at how to make them, fit them together and install the shed window into the wall of your shed.

iii. What type of articulation to use to connect the window frame members

The options for connecting your shed window frame members range from the simple butt joint to complex routered connections which require quite circuitous tooling. A quick overview of 3 types of shed window frame connexion are:

The simple butt joint.

This blazon of joint is very minimalist and would be frowned upon past many. Still, I have seen it used successfully on sheds that I have repaired so don't dismiss information technology out of hand immediately. The joint requires a small notch to be cut in the end of the two horizontal timbers and the frame members are continued with screws equally shown. Screwing into timber terminate grain isn't the strongest manner of connecting so if you wanted some boosted forcefulness then using pocket screws would be a good improver.

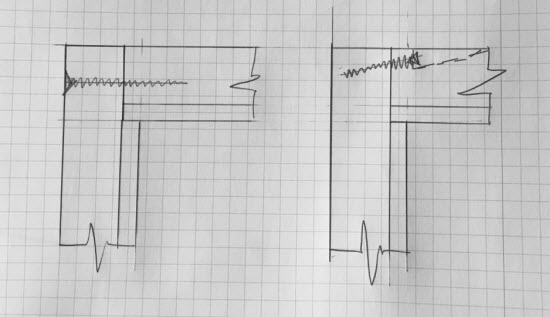

Detail of butt joint. Left hand side is with simple spiral to secure frame members. Right manus side is better connection using pocket hole screw.

The 'determent' joint.

This joint is similar to a mortice and tenon joint merely with one end of the mortice open up. The joint is held in place with gum and tin be farther strengthened with a wooden dowel or star dowel.

Particular of shed window frame joint

Automobile cut joint

A more sophisticated looking joint can exist achieved by using track and stile router cutters this achieves a similar forcefulness to the bridle joint. But of course teh ultimate window making machinery would be to use a spindle moulder, merely and so yous are getting into the realms of house windows, which isn't what this article is most!

The barrel articulation and the bridle joint can both exist cut with a hand saw or saw demote. The automobile cutting joint is cut either on a router table or spindle moulder. And then for this project I have shown the bridle joint which is stronger than the butt joint.

four. The options for glazing your shed window

Traditionally, drinking glass was held in in the window frame with metal glazing sprigs prior to applying putty effectually the perimeter of the window.

Many shed windows which are externally glazed don't use any sealant. The glass is only placed in position and a glazing quadrant held in place with 15mm long pins. If you want a amend seal, or more likely to end the glass rattling in the pane, then run a dewdrop of silicone sealant around the perimeter of the glazing rebate before placing the drinking glass. The seal between the drinking glass and the frame volition brand the joint h2o proof.

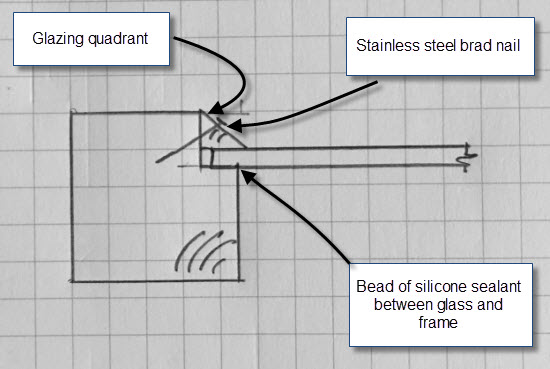

Department through window showing how drinking glass is held in place

Completed shed window frame

The very simplest method of property the glass in place is to just create a slot on the within face up of each member of the frame. This allows you to insert the glass as you assemble the frame. This is good in some ways for security as the drinking glass cannot exist removed without dismantling the frame. All the same, if the glass gets broken there is no manner of replacing the pane without removing then dismantling the shed window frame.

Nigh frames don't take this slot, but use the rebate system. And the glass tin can exist easily replaced if it becomes broken.

How to brand a shed window frame step by step

The following sequence is a shed window frame that I made using the drawing below.

The window is a fixed, not-opening, window. Information technology is made from pressure level treated timber, iii sides are 2x2" and the bottom is machined from 4x2".

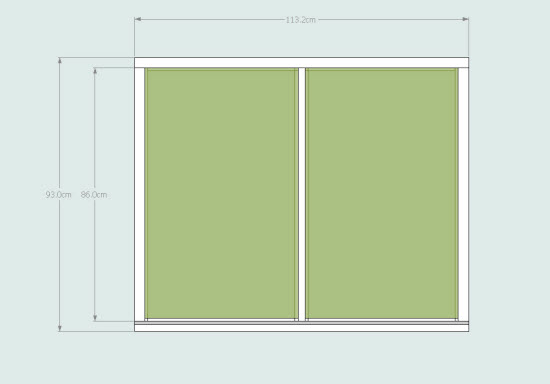

Components to be made for this project

The members are joined using a bridle joint at the corners and glued together. The frame is then screwed into position to connect it to the shed frame.

The window is glazed with 4mm toughened glass fitting into a 10x15mm rebate around the frame. The glass is sealed around the perimeter using a bead of silicone sealant and and then fixed in place with 10x12 timber glazing quadrant stock-still with stainless steel brad nails.

And then now that you know about the projection allow's get started:

The beginning step is to cutting the members to length.

To calculate the length, allow 2.5mm tolerance all circular the frame.

For this frame with a standard 610x610mm pane of horticultural glass the frame members were 30+2.5+610+2.v+30 = 665mm long.

As the window frame is to be foursquare then each member is the same length.

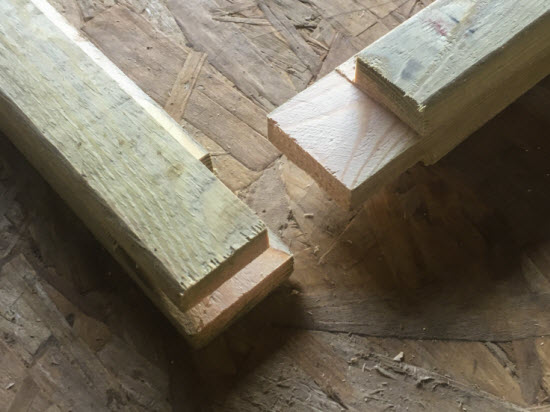

Members cut to length and with joints formed on the ends

A rebate is cut in each member of size 10x15mm to conform the glass and the glazing quadrant. This can be cutting using a router in a router table or using a table saw.

The window cill department is cut using the bract of table saw set to a 14 degree angle. The drip groove is cut to 10mm deep and with three passes of the saw to grade a groove 7.5mm wide.

Now that you accept the basic shed window frame stock, the next footstep is to cut the joints.

Cutting the joints

No special equipment is required to cut the joints. It is perfectly possible to cut these elementary joints with a hand saw and to employ a hammer and chisel to remove the waste where necessary. For this projection I used a table saw and some jigs to speed upwards the cut process.

As with any woodworking project of this type take great care to mark out the joints and understand which department of woods is to exist removed before taking it out. Act in hast apologize at leisure!

Once you have all the joints cut, check that they fit

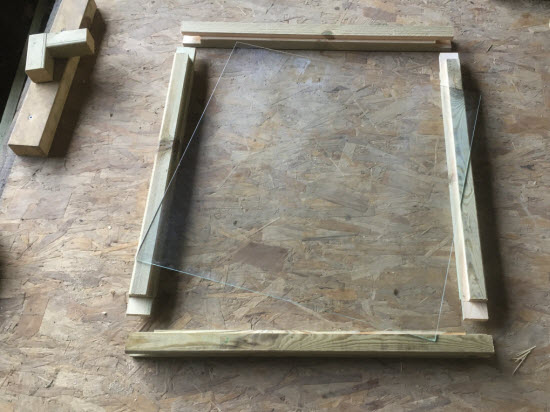

Dry out fitting the frame

Attempt fitting the four members together to check that they fit. Measure across the diagonals of the frame to make sure that the frame is square (both diagonal measurements the same). Also bank check that the glass fits in the glazing rebate.

Gluing the parts together

When y'all have ensured that all the parts fit together well it is time to make the joints permanent. Before yous outset to glue make sure you accept some clamps to concord the pieces in place earlier the glue sets. I used some fairly standard bar clamps, just you could utilize some straps to use some pressure level if yous don't have these to hand.

I used some water proof polyurethane glue for the joints. Too as existence waterproof this expands into the joints and fills whatsoever small gaps.

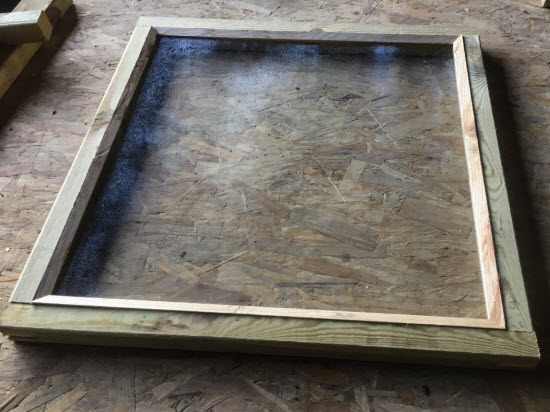

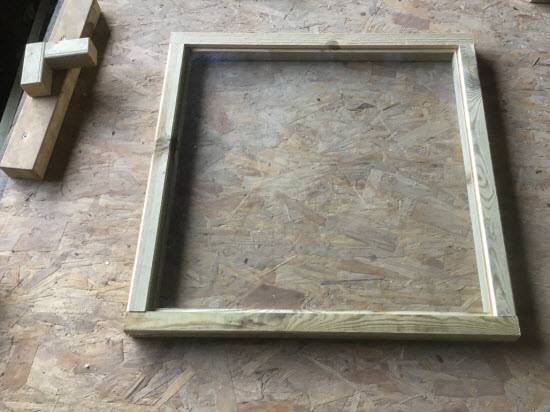

Window frame 'dry-assembled' with pane in identify to cheque the fit

Glazing the window

The glass is best fitted after the frame is installed into the shed. This is because if you are a bit crude with the installation it is quite easily possible to deform the frame and crevice the drinking glass.

A bead of silicone sealant is applied effectually the edge of the rebate and the drinking glass is then laid on to this. Another bead is then practical to the perimeter of the glass and the 10x10mm glazing quadrant fixed in place with stainless steel pins.

I cut my own glazing quadrant from a hardwood such as oak or sweet anecdote, which is resistant to decay.

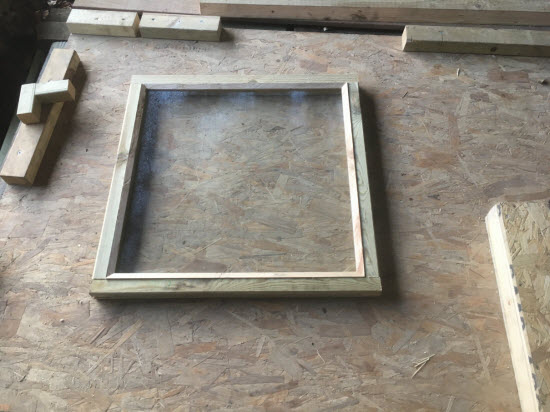

Completed window with glazing quadrant in place

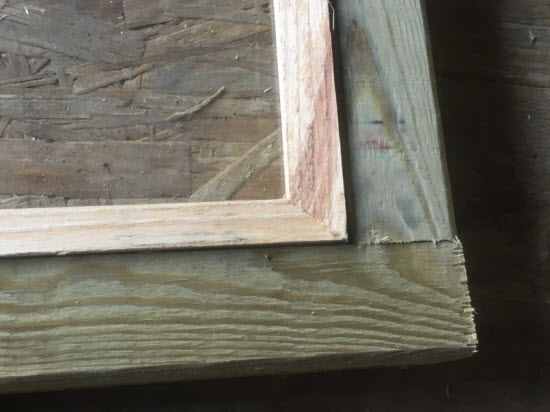

Close upwards detail of glazing quadrant

Determination

Of class, yous don't have to be limited to a single paned window.

Window frame with 2 panes

I promise you constitute this article useful for making fixed shed window frames.

If you would like more information allow me knowand I can aggrandize it to include opening, side or top hung shed window frames as well.

More data on the best type of shed window glazing can be institute here.
